0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

Brand Name : QuanJiang

Model Number : MR,SPCC,DR8,Q195,A08AL,SPTE

Certification : JIS G3303 , DIN, ASTM, GB

Place of Origin : China

MOQ : 25tons

Price : Negotiated

Payment Terms : T/T

Supply Ability : 50000MT/Month

Delivery Time : 30days after deposit

Packaging Details : Seaworthy Standard with wooden pallet, corner protected. by sheet or coils according customer's requires.

Material : MR,SPCC,prime tinplate / TFS

Width : 650~1010mm

Hardness : T1,T2,T3,T4,T5,DR7,DR8,DR9,TH550,TH520

Type : Tinplate Coil/ sheet

Temper : BA CA

Package : iron guard with fumigation wooden pallet

Thickness : 0.14-0.45mm

Length : 600mm-1080mm ,Coils

Tin Coating : 1.1/1.1,2.0/2.0,2.8/2.8,5.6/5.6, etc. or customerized

Surface : Bright,Stone,Matte, Sliver, rough stone

Application : tuna can, food can, aerosol can, paint can ,milk can ,etc

Features : rust resistance, corrosion resistance, heat resistance , alkali resistance

Contact Now

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

Product Description:
Electrolytic Tin Plate (ETP) represents a sophisticated packaging material engineered for superior food preservation and container performance. These precision-grade coils feature a cold-rolled low-carbon steel base with a pure tin coating electrolytically applied to both surfaces, creating an ideal barrier against corrosion while maintaining excellent formability. The 0.23mm thickness specification provides optimal balance between material strength and manufacturing efficiency, making it particularly suitable for food cans, aerosol containers, and chemical packaging. Available in various tempers from T1 to DR9, these coils accommodate diverse forming requirements while ensuring consistent performance. The MR-grade base material guarantees exceptional purity and consistency, meeting stringent international food safety standards. With customizable tin coating weights and surface finishes, these materials offer packaging manufacturers reliable solutions for demanding applications.

Features & Advantages:

  • Precision 0.23mm thickness for optimal strength-to-weight ratio

  • Superior corrosion and rust resistance for extended product shelf life

  • Excellent formability across multiple temper grades (T1-T5, DR7-DR9)

  • Food-safe certification compliant with global food contact regulations

  • Customizable tin coating weights from 1.1/1.1 to 5.6/5.6 g/m²

  • Multiple surface finishes (bright, stone, matte, silver) for varied applications

  • Consistent dimensional accuracy ensuring manufacturing efficiency

  • Excellent weldability and solderability for seamless can production

Applications:

  • Food and beverage cans (tuna, vegetables, fruits, drinks)

  • Aerosol containers and spray cans

  • Paint and chemical packaging

  • Pharmaceutical and industrial containers

  • Specialty packaging components

Technical Parameters:


Property Specifications
Material Grade MR, SPCC Food Grade
Thickness Range 0.15-0.45mm (0.23mm standard)
Available Widths 650-1010mm (customizable)
Surface Finish Bright, Stone, Matte, Silver
Tin Coating 1.1/1.1 to 5.6/5.6 g/m²
Temper Grades T1-T5, DR7-DR9, TH520-TH550
Standards JIS G3303, DIN, ASTM, GB

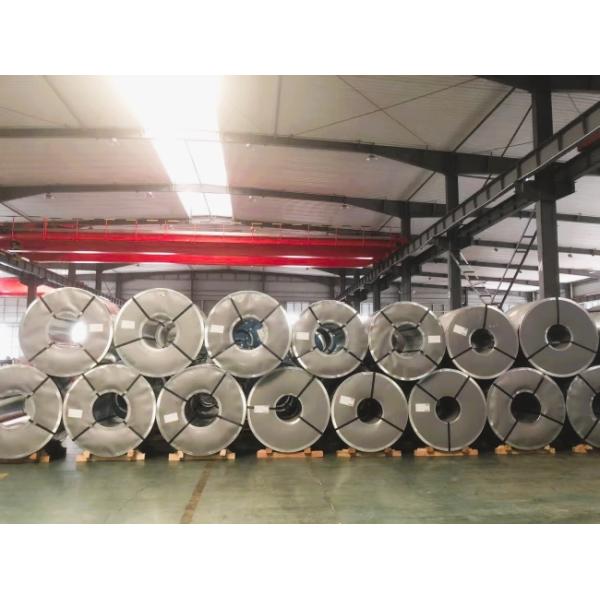

TINPLATE COILS WORKSHOP Show

Tinplate coil wearhouse NO.3

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

Tinplate coil wearhouse NO.7

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

Tinplate sheets wearhouse NO.2

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

Tinplate is widely used for the packaging of products. Such as food cans,

beverage cans, pet cans, closures,general line cans and so on.0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

  • Free samples provide.
  • 20 years experience technicial support.
  • Service always available .
  • 1st grade material for every production.
  • Original cost for your separated purchase.

Printing workshop Production Process

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified

CERTIFICATE

0.23mm Food Grade Electrolytic Tin Plate Coils for Can Manufacturing - ASTM/JIS Certified


FAQ:

  1. What makes 0.23mm thickness ideal for food cans?
    This thickness provides perfect balance between material strength for protection and formability for manufacturing efficiency.

  2. Are these materials suitable for acidic food products?
    Yes, the tin coating provides excellent resistance to acidic contents commonly found in food applications.

  3. Can you provide customized coating weights?
    We offer customizable tin coating from 1.1/1.1 to 5.6/5.6 g/m² based on specific application requirements.

  4. What certifications do you maintain?
    Our products comply with JIS G3303, DIN, ASTM, and GB international standards with complete documentation.

  5. What is the lead time for production?
    Standard orders ship within 30 days after order confirmation and deposit payment.
